RC006 RECEIVER
TECHNICAL SPECIFICATIONS
Power: AC120V(60Hz)
Rated: Do not exceed 400 watts
Protection Index: IP44
The receiver can be compatible with 15 remotes at most.
The receiver will cut off electricity after working 4 minutes continuously.
WIRE CONNECTIONS
CODE LEARNING
NOTES: Channel B is used as an example to explain the receiver's operation. Channel A's operation is the same.
COPY
Remote B can control the tubular motor after it learns code from remote A
CODE DELETING
Note: No remote can not control this motor after code deleting, unless you reset.
DIRECTION CHANGE
SET STEP BY STEP FUNCTION
Note: If the motor runs step by step, long press remote’s UP or DOWN button for 3 seconds, the motor will run continuously.

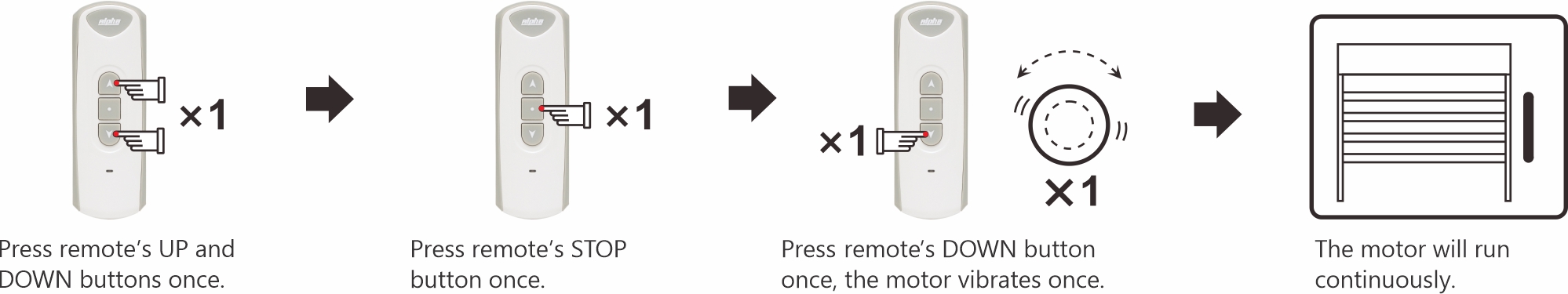

DELETE STEP BY STEP FUNCTION
WALL SWITCH
A wall switch can be connected to the receiver to control the tubular motor. The manual switch is to connect Door Bell Switch.
With manual switch, the tubular motor can achieve UP-STOP-DOWN-STOP-UP sequence.
ANNOUNCEMENT
The setting may fail due to other signal interference. In this case, please reset.
The remote RE101 is taken as an example in this instruction. The receiver is compatible with other rolling codes remotes also.
If remote’s battery is in low power, please replace it.
The receiver is of high voltage, please do not place it in humid conditions.
Children should be supervised to ensure that they do not play with the appliance.
Working temperature: -10℃ to +55℃.
All products are as per real subjects. There will be no prior notification if any change in appearance, color, functions etc.
