WSER50 LED Retractable Awning

awning LED motor

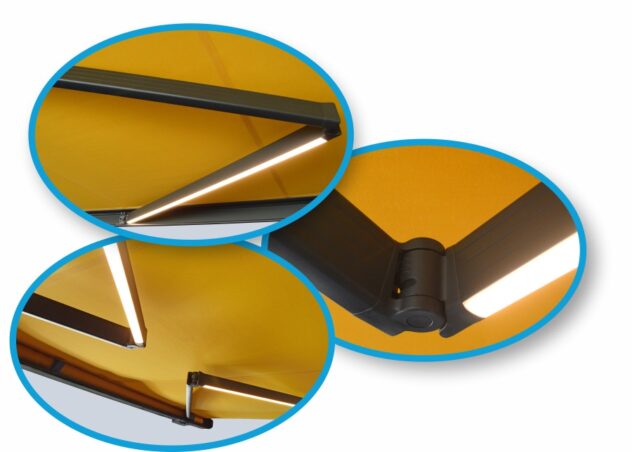

Alpha’s new remote controlled folding arm awning LED motor with 24 volt DC output and featuring LED output switch with dimming feature.

WSER Retractable Motor Instructions – click here

WSER Retractable Motor Programming Sequences – click here

Size: Array

Product Description

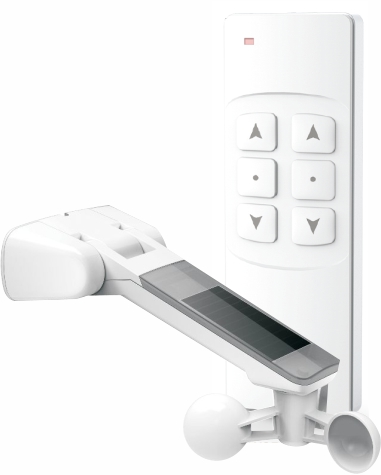

The light sensor is activated via the remote. During strong winds, this function is blocked. There is a constant radio link between the wind/light sensor and motor to ensure the safety of the awning.

  • 7 year replacement warranty
  • Electronic limit switch
  • Built-in receiver
  • DC 12V/24V 30 watts
  • 45mm diameter

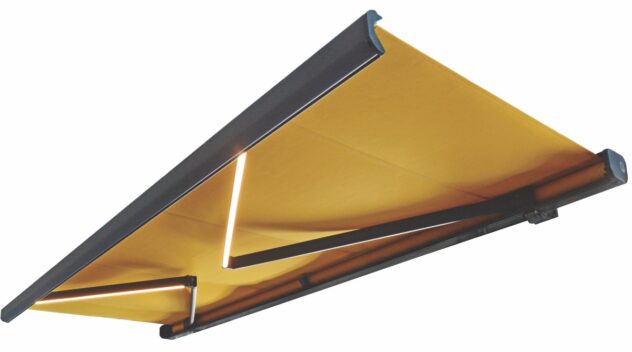

retractable remote control LED motor awning LED motor with lighting

120V/60HzType
Rated Torque (N.m)50
Output Speed (rpm)16
Nominal Consumption (W)186
Nominal Voltage (V)120
Nominal Current (A)1.60
Running Time (Mins)4
Protection Index (IP)44
Total Length (in)23.62
Maximum Turnsinfinity
Net Weight (lb)5.40



WSER50 LED Retractable Awning
