WSERD50-T 50/12 Universal
Alpha’s new 50Nm Universal motor is designed for straight drop awning products. This new motor is significantly quieter, is energy efficient delivering lower energy usage during each cycle. Advanced thermal performance is capable of continuous operation with integrated thermal management – can run at full load for up to 12 minutes without overheating, enabling near-continuous operation.
Integrated upward tensioning mechanism to improve fabric tension and reduce fabric sag, with a selection of 3 different speeds.
Product Description
- 3 core motor
- Electronic limit switch
- Built-in receiver
- 3rd intermediate limit position

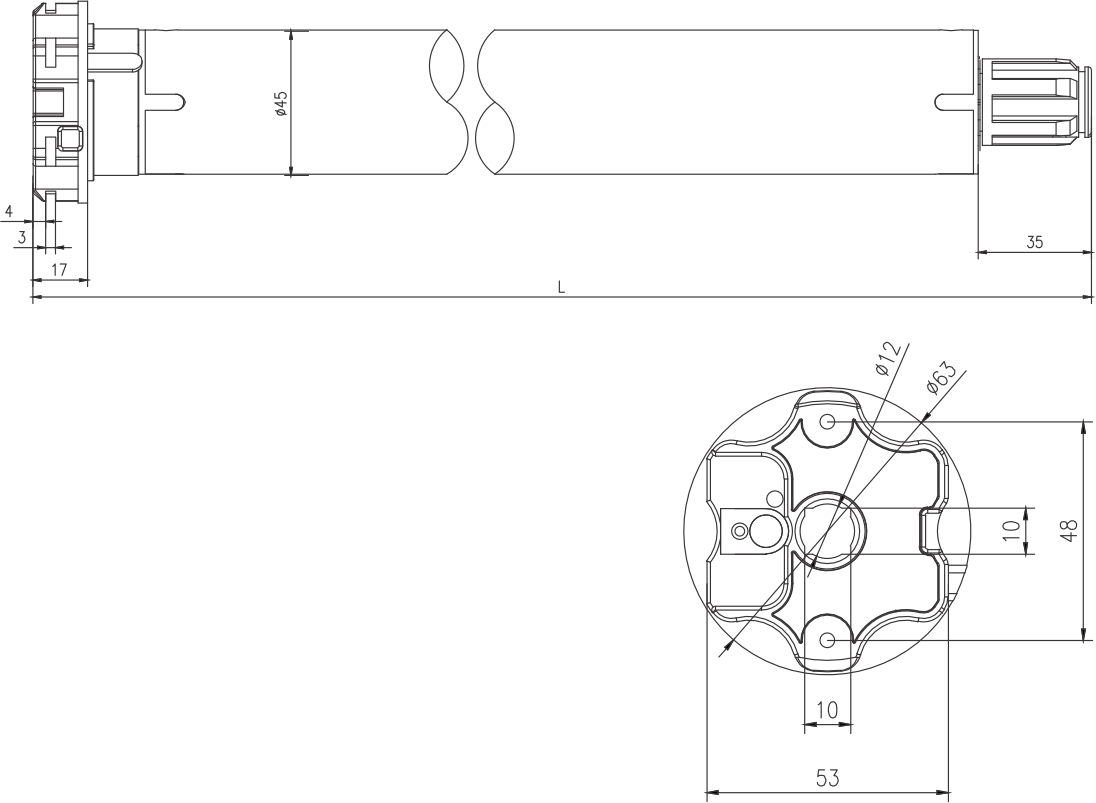

- 45mm diameter
- Fabric tensioning
- Quiet operation
- 3 selectable speeds
- Long thermal overload
- Low power consumption
WSER50-T 50/12 Universal Specs
| 120V/60Hz | Type 50/12 |
|---|---|
| Rated Torque (N.m) | 50 |
| Output Speed (rpm) | 8/10/20/12 |
| Nominal Consumption (W) | 170 |
| Nominal Voltage (V) | 100-240 |
| Nominal Current (A) | 0.9 |
| Running Time (Mins) | 12 |
| Protection Index (IP) | 44 |
| Total Length (in) | 31 |
| Maximum Turns | infinity |
| Sound Intensity (dB) | 32 |
| Net Weight (lb) | 6.6 |
SAFETY GUIDELINES FOR ALPHA TUBULAR MOTORS
At Alpha Tubular Motors, your safety and the effective operation of our tubular motors with lithium-ion batteries are our top priorities. We kindly ask you to follow these important safety guidelines:
Avoid Overcharging
Please disconnect the motor from the charger as soon as the green light indicates a full charge. Overcharging can lead to overheating and may pose a fire risk.
Prevent Overheating
To help prevent overheating, ensure the motor is not exposed to high temperatures or direct sunlight for extended periods.
Immediate Action
If you notice any unusual warmth, discoloration, or odors coming from the motor, please disconnect it from the power source and stop using it right away.
Proper Storage
Store the motor in a cool, dry place, away from flammable materials. For best results, keep it within a temperature range of -4°F to 149°F.
Use Approved Chargers
Always use the charger that comes with the motor or an approved replacement. Using incompatible chargers can create safety hazards.
Disposal
Please dispose of lithium-ion batteries according to local regulations. Avoid incinerating or submerging them in water, as this can lead to dangerous reactions.
Additional Notes
To keep your motor in top shape, charge it every six months.
For safety, please ensure that children do not play with the remote or motor.
Liability Disclaimer
While we at Alpha Tubular Motors strive to provide safe and reliable products, we cannot accept liability for any damage or personal injury resulting from improper use, charging, storage, or handling of our motors or their lithium-ion batteries. By using our products, you acknowledge that you have read, understood, and agree to follow these safety guidelines.
